Indoor Series
Indoor Digital Menu Board (IDMB)
Ultra-slim. Ultra-narrow bezel. No cameras.
Ultra-thin indoor menu board with a 10 mm bezel and 23 mm body — no cameras. Application sheets lead the gallery; factory photos and the thin-display drawing follow.
10 mm
Ultra-narrow bezel
Content-first presentation from the actual thin-display drawing.
23 mm
Ultra-slim body
23 mm panel depth; 33.6 mm including the rear electronics box.
300×300
M6 wall mount
Centered 300 × 300 mm M6 mounting pattern for flush install.
Features
Built for real-world deployment
23 mm Ultra-Slim Body
23 mm panel depth, 33.6 mm including the rear electronics box — sits close to the wall.
10 mm Ultra-Narrow Bezel
Narrow bezel keeps the menu content first in dining and retail interiors.
No Cameras
Clean indoor silhouette — no camera housings on the thin display.

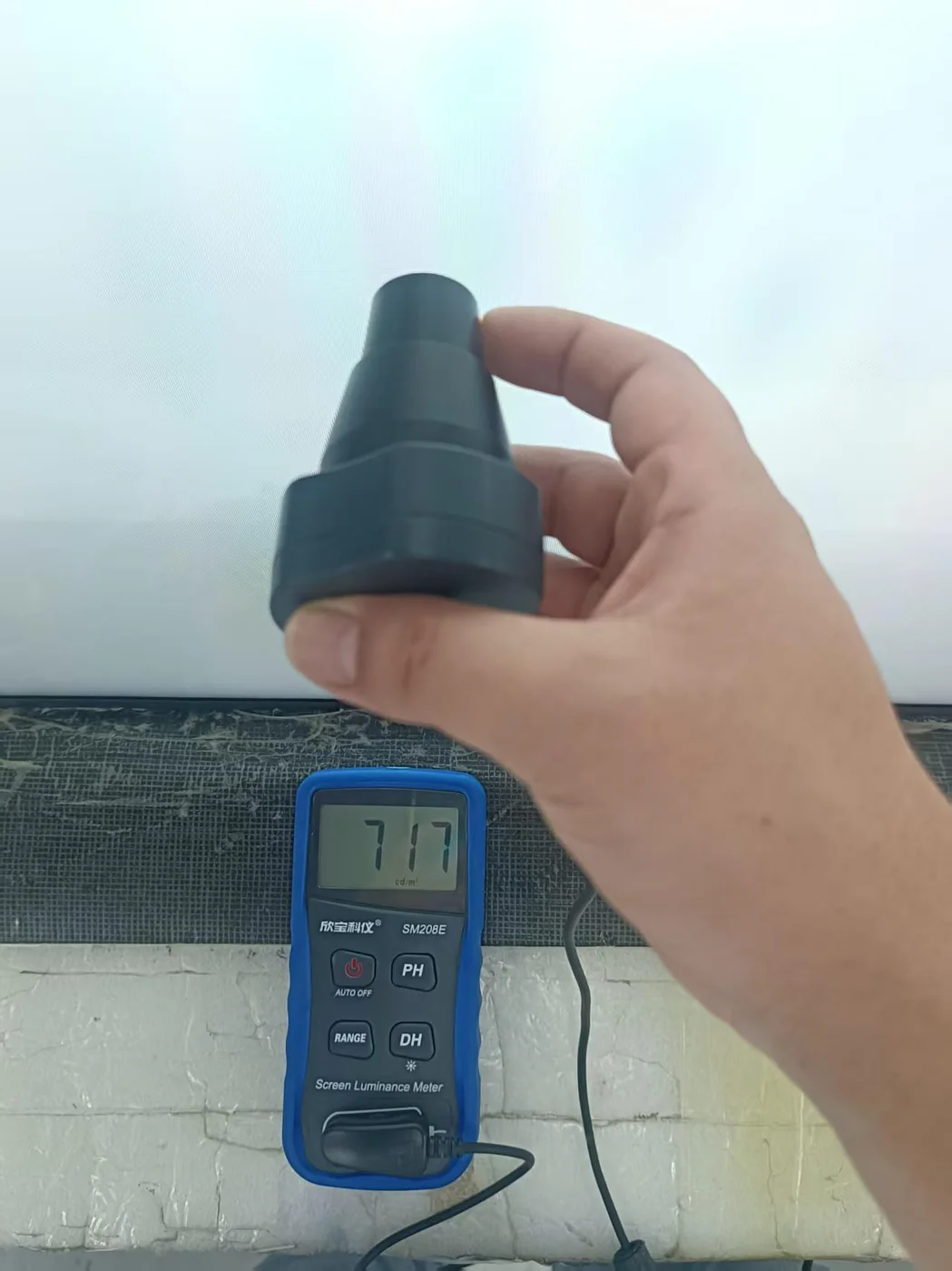

700-nit Indoor Clarity
Readable menus under typical restaurant and storefront lighting.
300 × 300 M6 Mount
Centered M6 pattern for stable, repeatable wall installation.

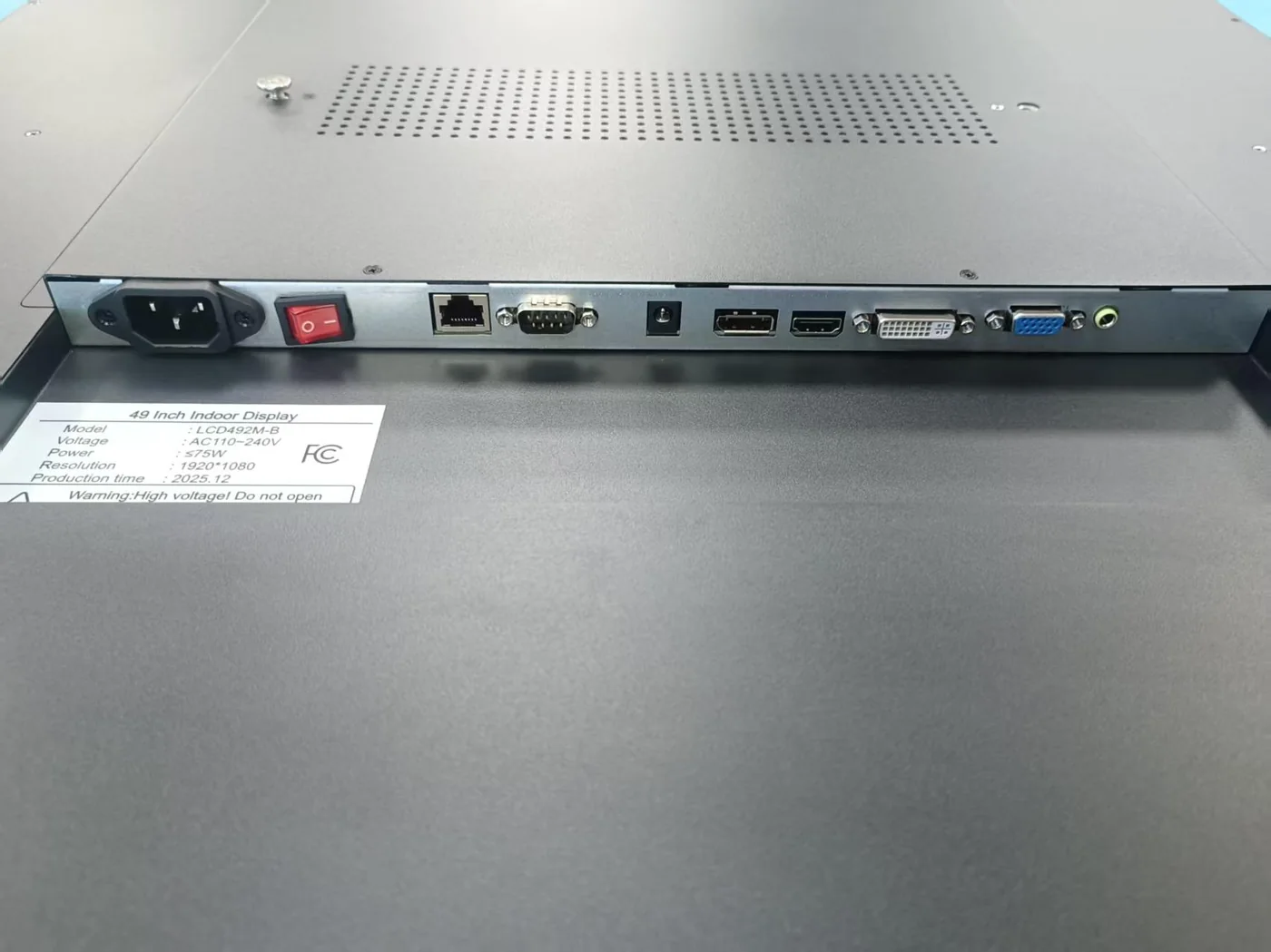

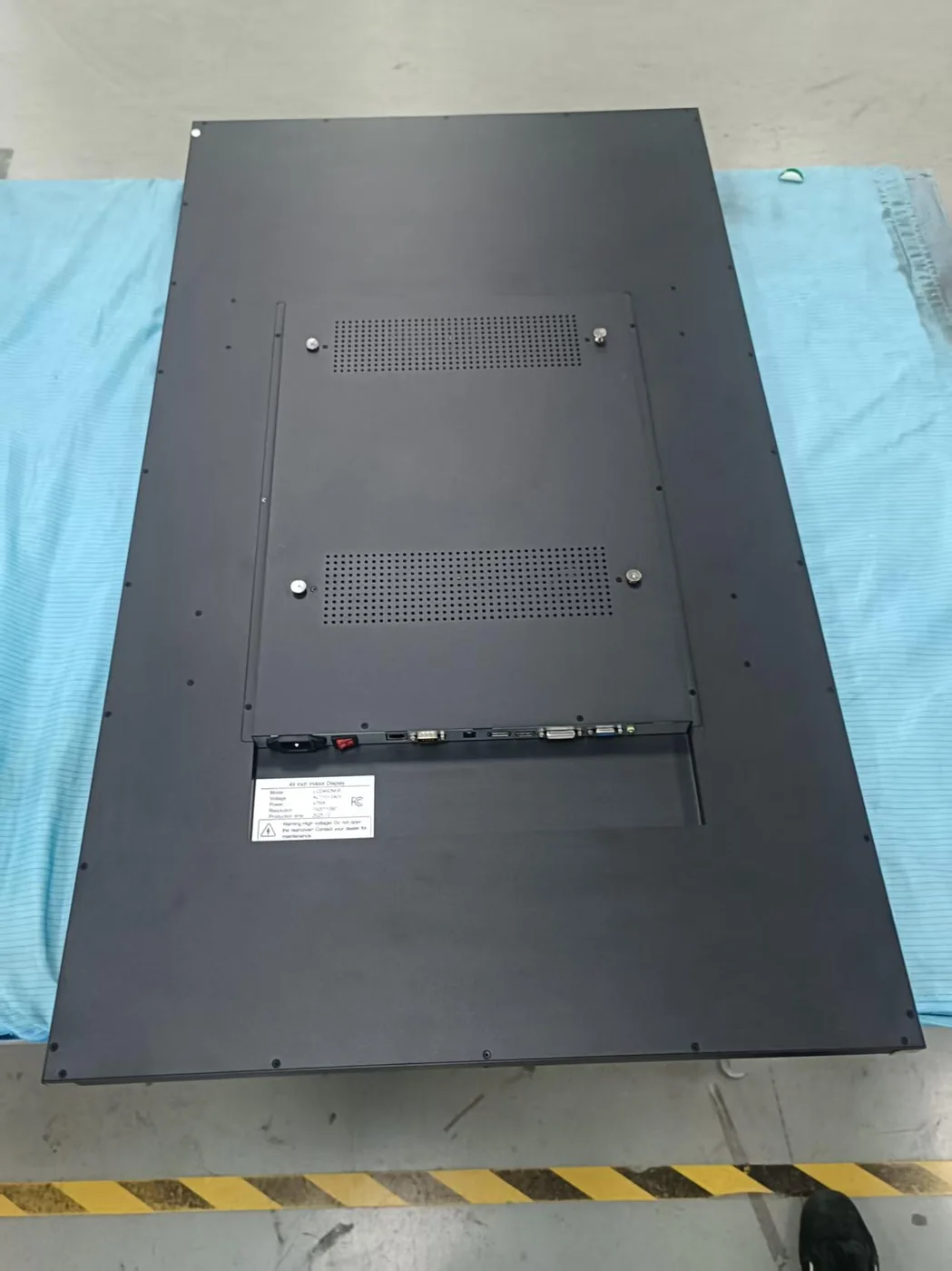

Rear Electronics Box
Ventilated rear box carries power and I/O while keeping the face thin.

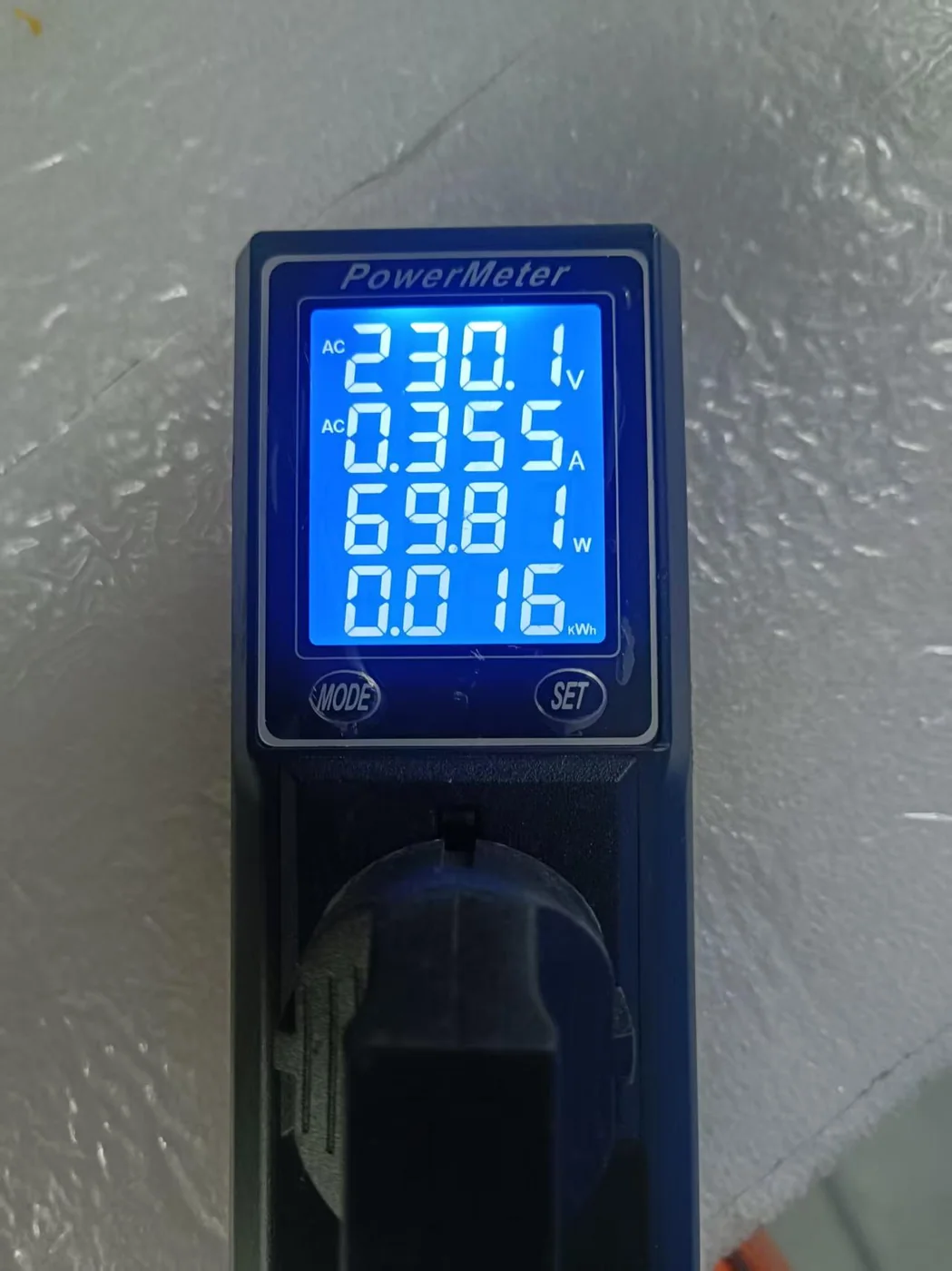

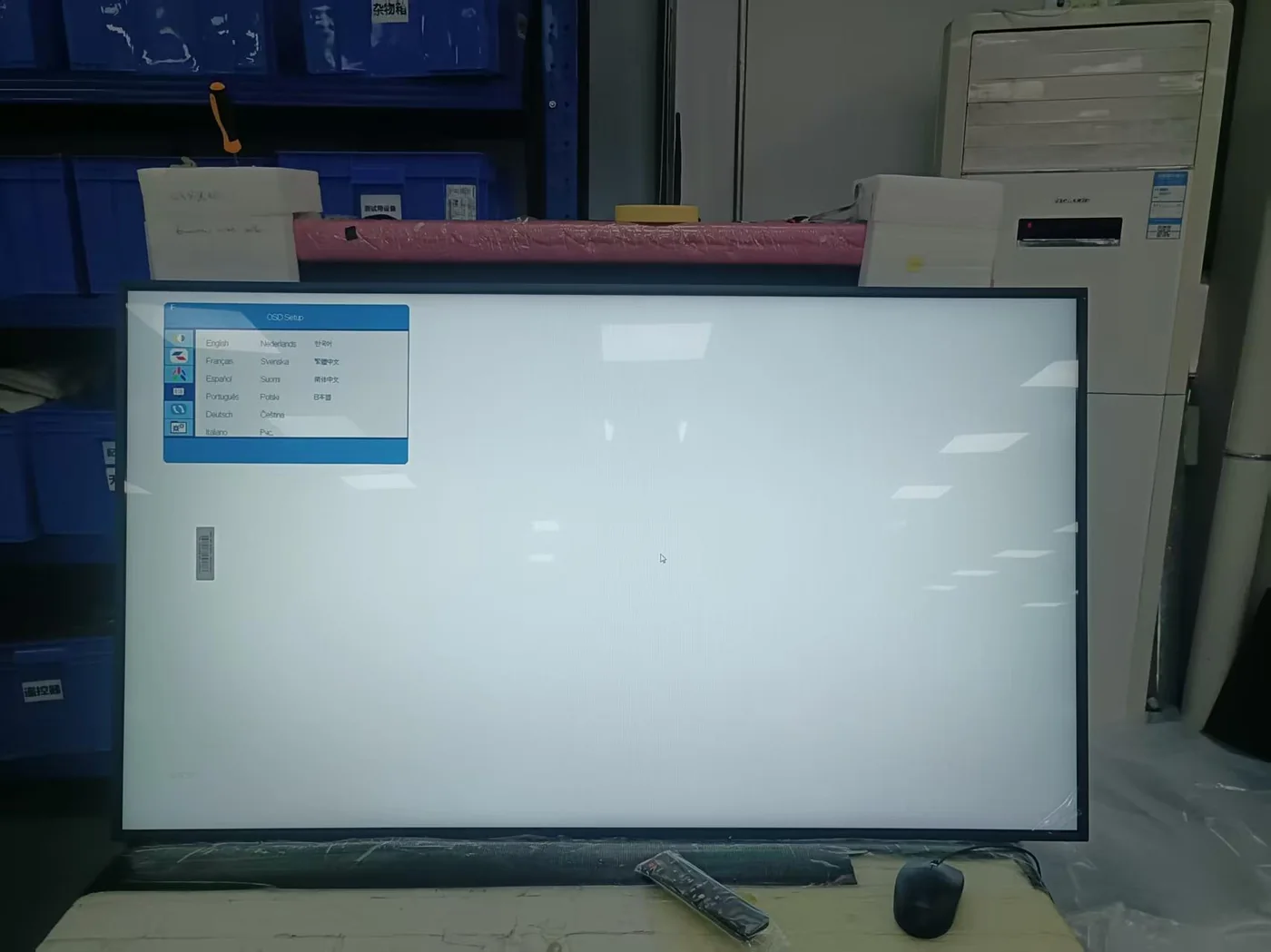

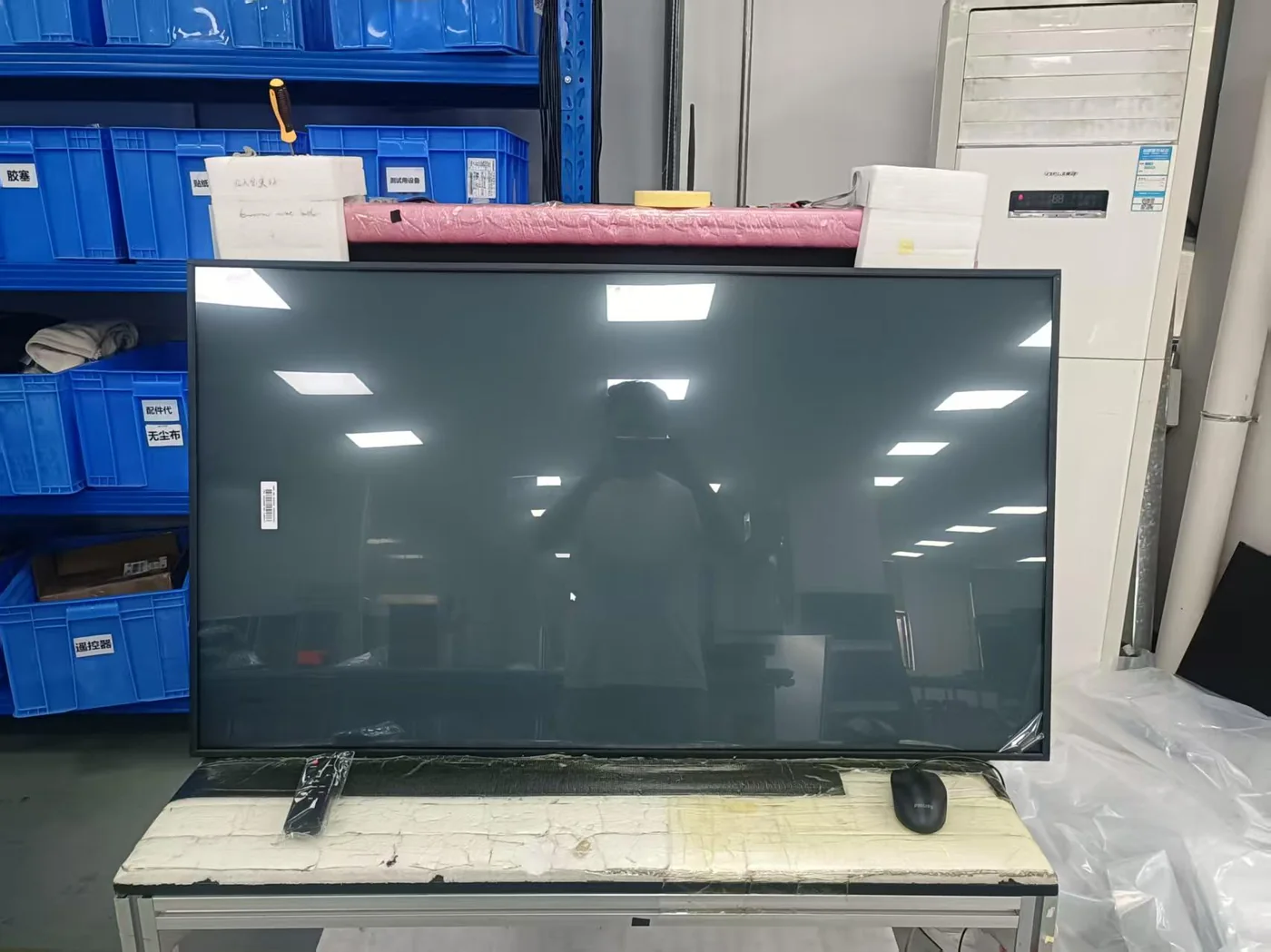

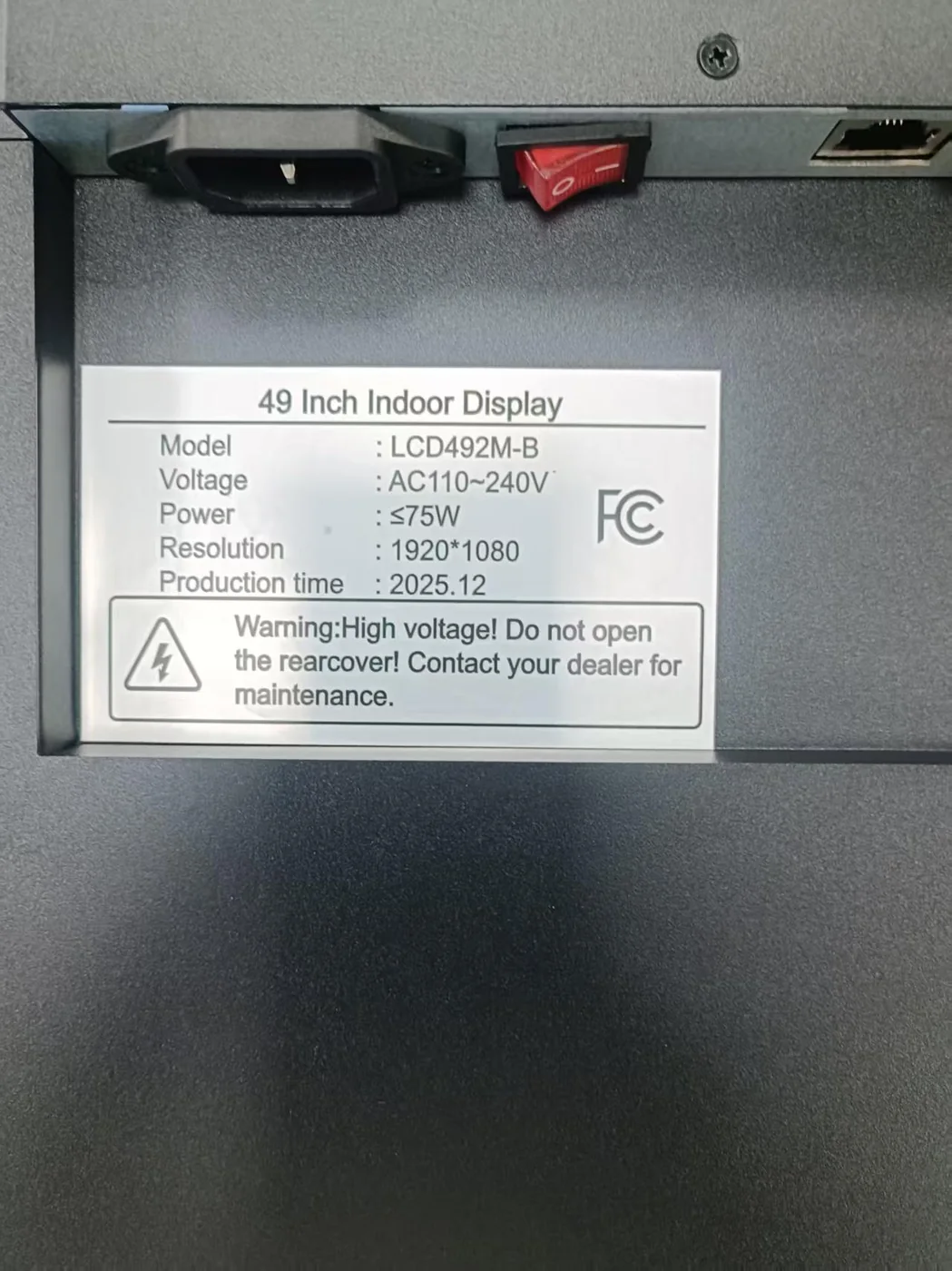

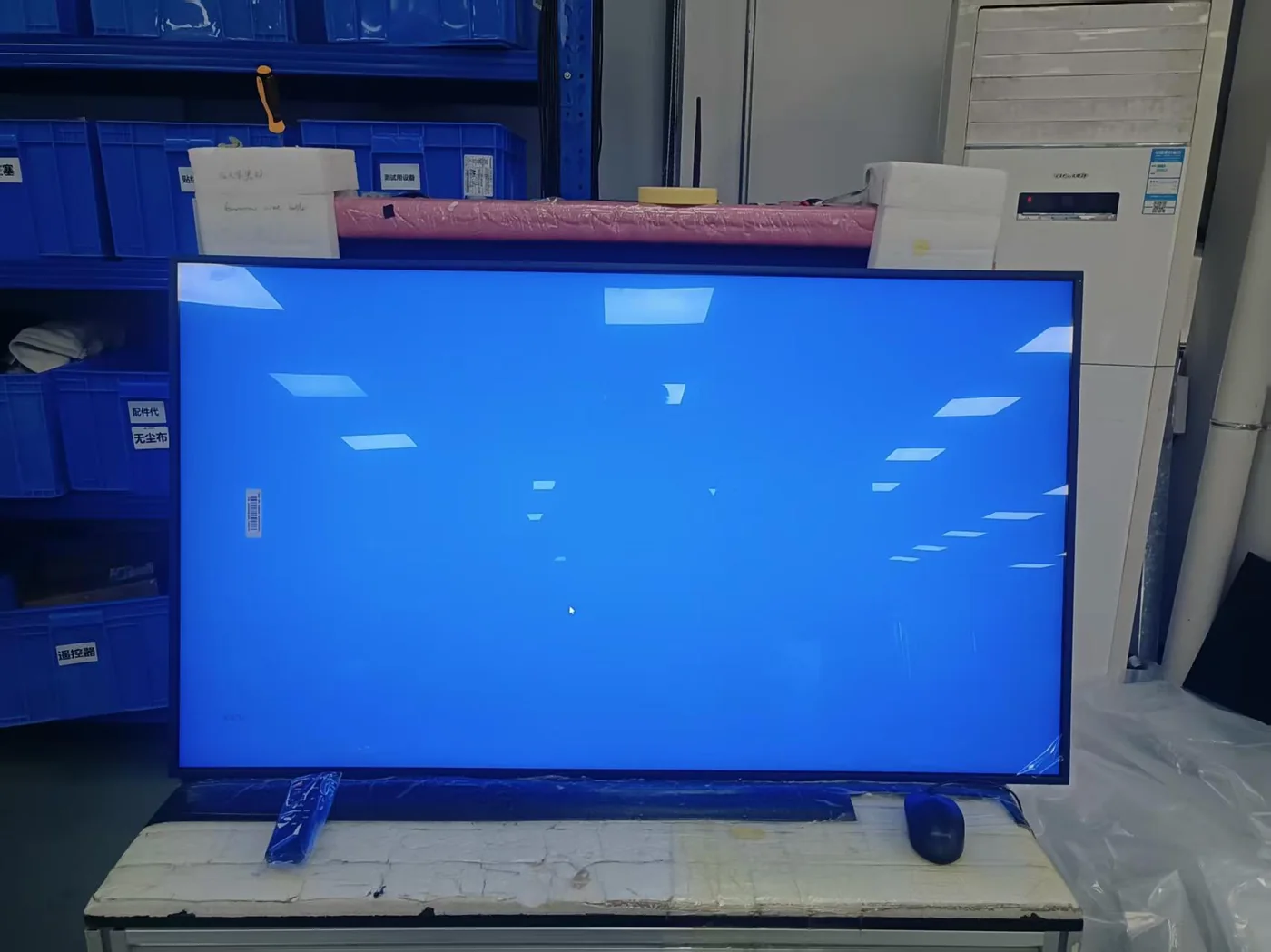

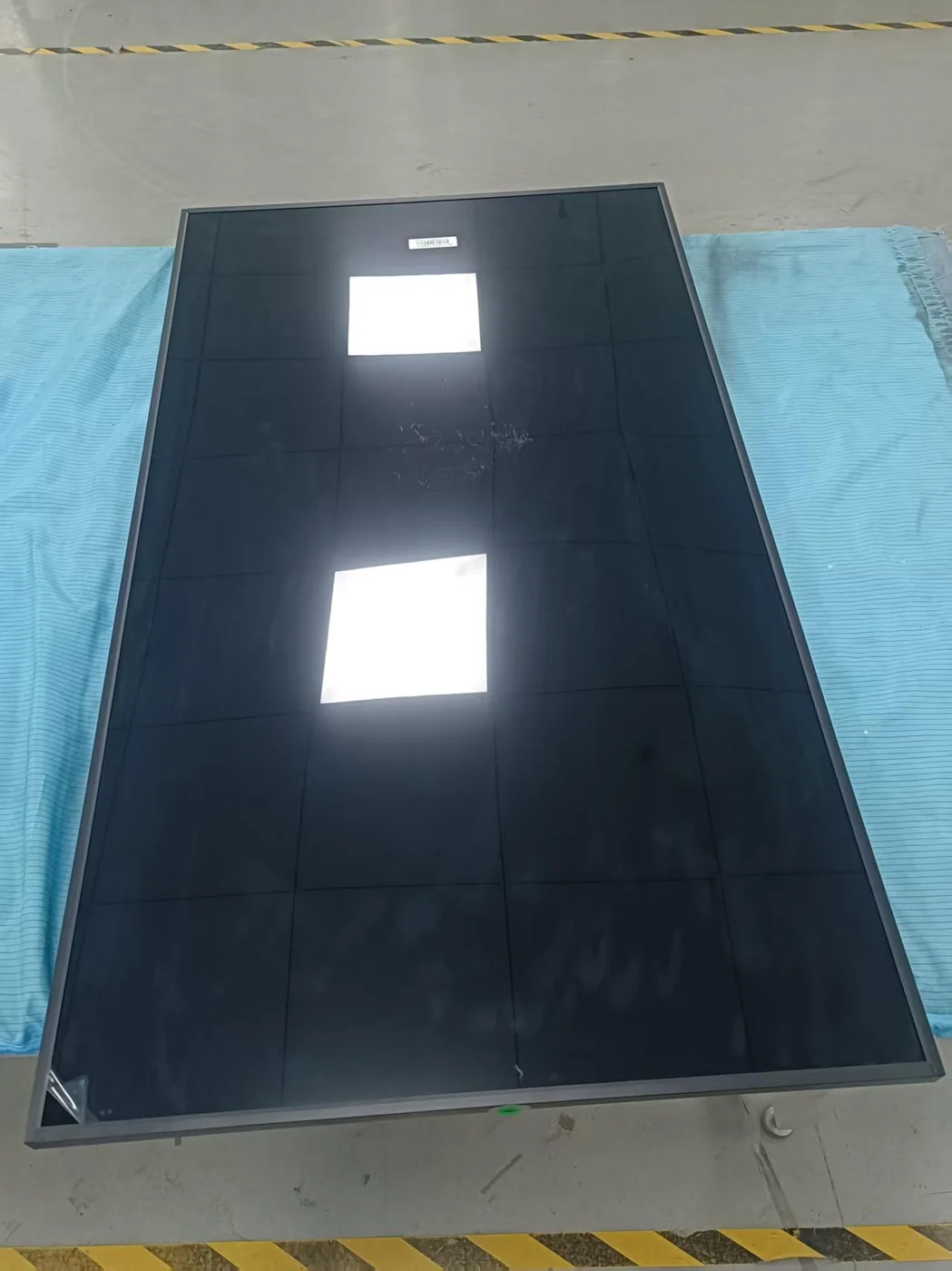

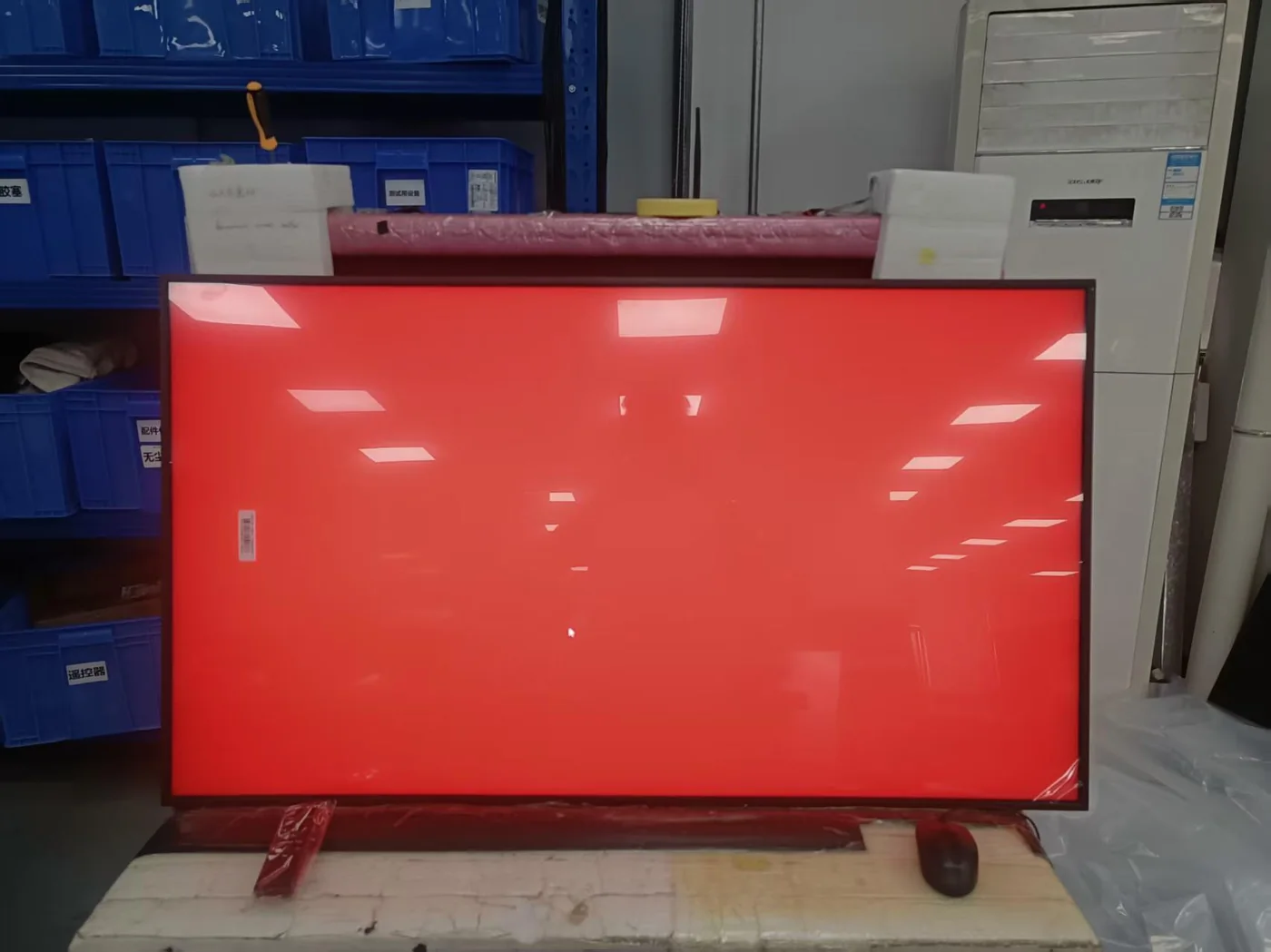

Hardware Photos
Real production photography

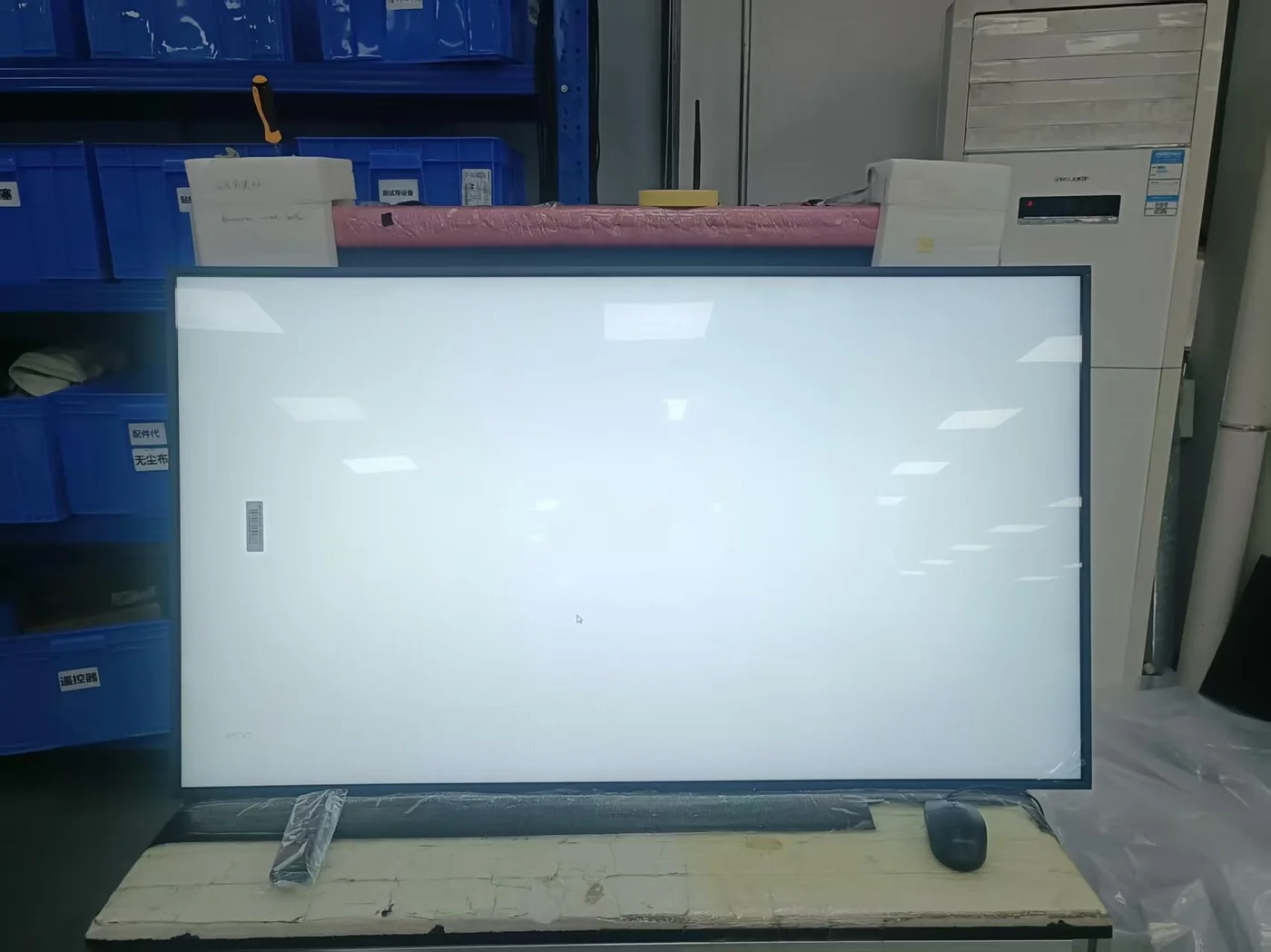

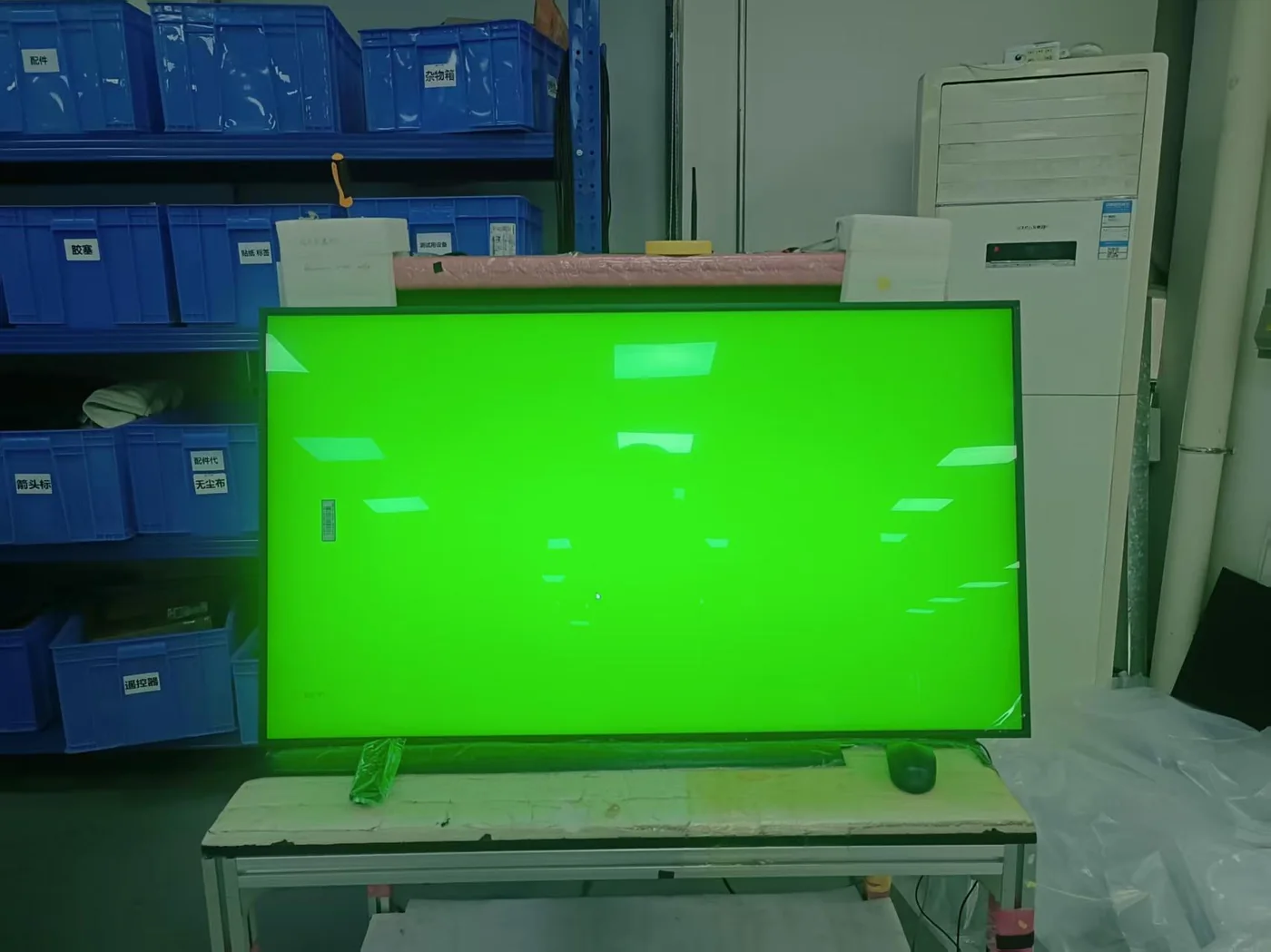

Factory and inspection photos of this hardware. Tap any frame to enlarge.

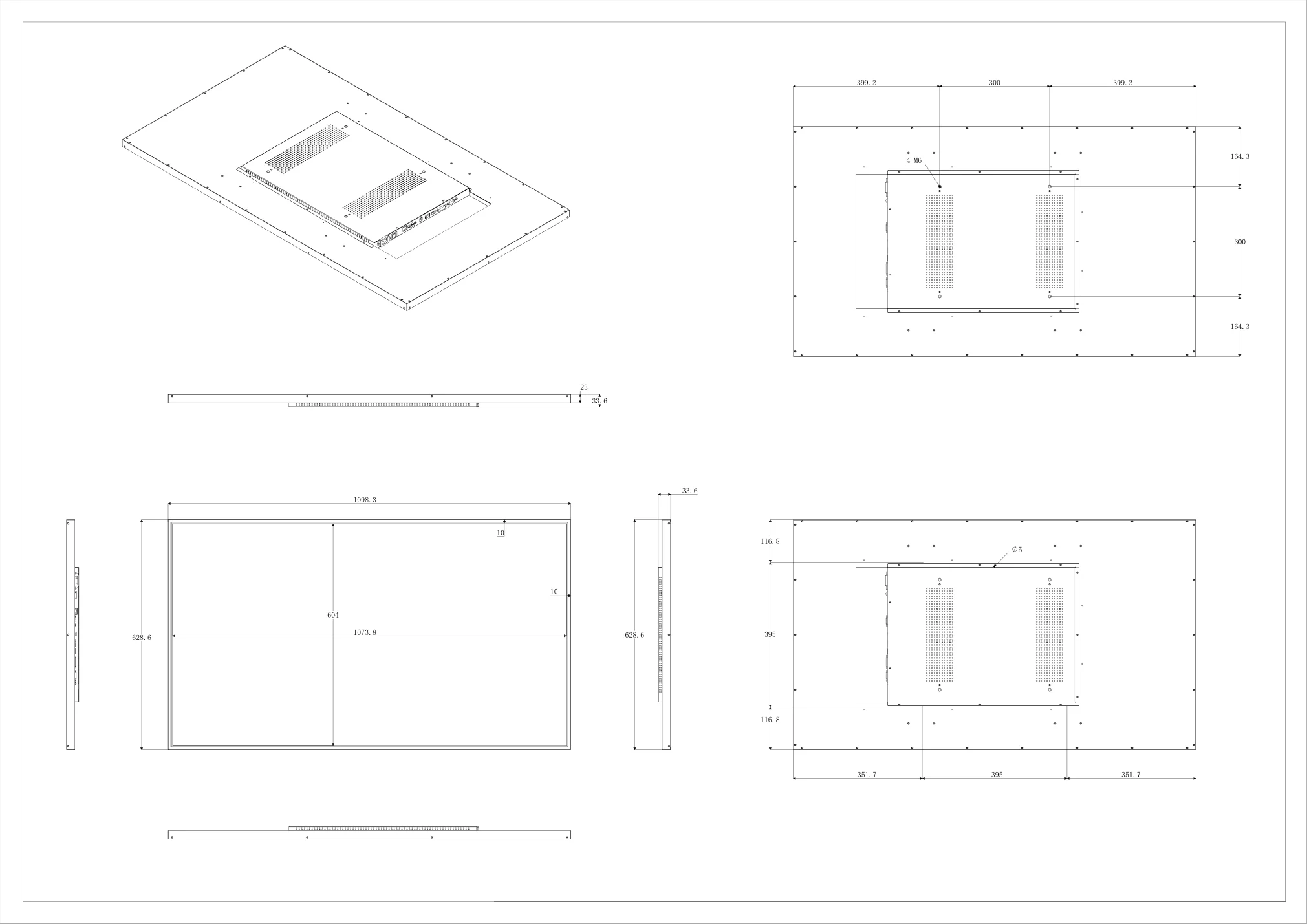

Technical Drawings
Dimensions & configurations
Actual hardware drawings — swipe or use the arrows to review each sheet.
Specifications
Full specifications
| 21.5″ | 27″ | 32″ | 43″ | 49″ | 55″ | 65″ | |
|---|---|---|---|---|---|---|---|
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 3840×2160 |
| Active Display Area | 476.1×267.8 mm | 597.9×336.3 mm | 702.8×397.3 mm | 942×530.4 mm | 1075×605 mm | 1210×680.8 mm | 1429×804 mm |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Brightness | 700 nits | 700 nits | 700 nits | 700 nits | 700 nits | 700 nits | 700 nits |
| Contrast Ratio | 1200:1 | 1200:1 | 1200:1 | 1200:1 | 1200:1 | 1200:1 | 1200:1 |
| Viewing Angle (H/V) | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Response Time | 6 ms | 6 ms | 6 ms | 6 ms | 6 ms | 6 ms | 6 ms |
| Operation Hours | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 |
| Speakers | 5W ×2, internal | 5W ×2, internal | 5W ×2, internal | 5W ×2, internal | 5W ×2, internal | 5W ×2, internal | 5W ×2, internal |
| Power Supply | AC 100–240V, 50/60 Hz | AC 100–240V, 50/60 Hz | AC 100–240V, 50/60 Hz | AC 100–240V, 50/60 Hz | AC 100–240V, 50/60 Hz | AC 100–240V, 50/60 Hz | AC 100–240V, 50/60 Hz |
| Max Power Consumption | 32.9 W | 43 W | 52.5 W | — | — | 114 W | — |
| Sleep / Off Mode | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W |
| Dimensions (W×H×D) | 500.2×291.8×20 mm | 621.2×359.8×20 mm | 722.8×417.3×20 mm | 965.6×553.8×20 mm | 1098.1×628.4×20 mm | 1234×704.8×20 mm | 1429×804×20 mm |
| Net Weight | 5.5 kg | 7.1 kg | 13.85 kg | 14.8 kg | 16.1 kg | 17.3 kg | — |
| Panel Surface TNI | 55°C | 55°C | 55°C | 55°C | 55°C | 55°C | 55°C |
| Operating Temperature | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C |
| Operating Humidity | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% |
| Processor | Commercial-grade processor | Commercial-grade processor | Commercial-grade processor | Commercial-grade processor | Commercial-grade processor | Commercial-grade processor | Commercial-grade processor |
| Memory | 4GB RAM / 32GB storage | 4GB RAM / 32GB storage | 4GB RAM / 32GB storage | 4GB RAM / 32GB storage | 4GB RAM / 32GB storage | 4GB RAM / 32GB storage | 4GB RAM / 32GB storage |
| Connectivity | USB ×2, HDMI, RJ45, Wi-Fi | USB ×2, HDMI, RJ45, Wi-Fi | USB ×2, HDMI, RJ45, Wi-Fi | USB ×2, HDMI, RJ45, Wi-Fi | USB ×2, HDMI, RJ45, Wi-Fi | USB ×2, HDMI, RJ45, Wi-Fi | USB ×2, HDMI, RJ45, Wi-Fi |
| Operating System | Android 11 | Android 11 | Android 11 | Android 11 | Android 11 | Android 11 | Android 11 |
Hardware specifications subject to final configuration.
Connectivity
- HDMI
- USB 3.0 & USB OTG
- RJ45 Ethernet
- Wi-Fi (802.11b/g/n)
- TF card & SIM slots
- IR receiver
- AC 100–240 V power input

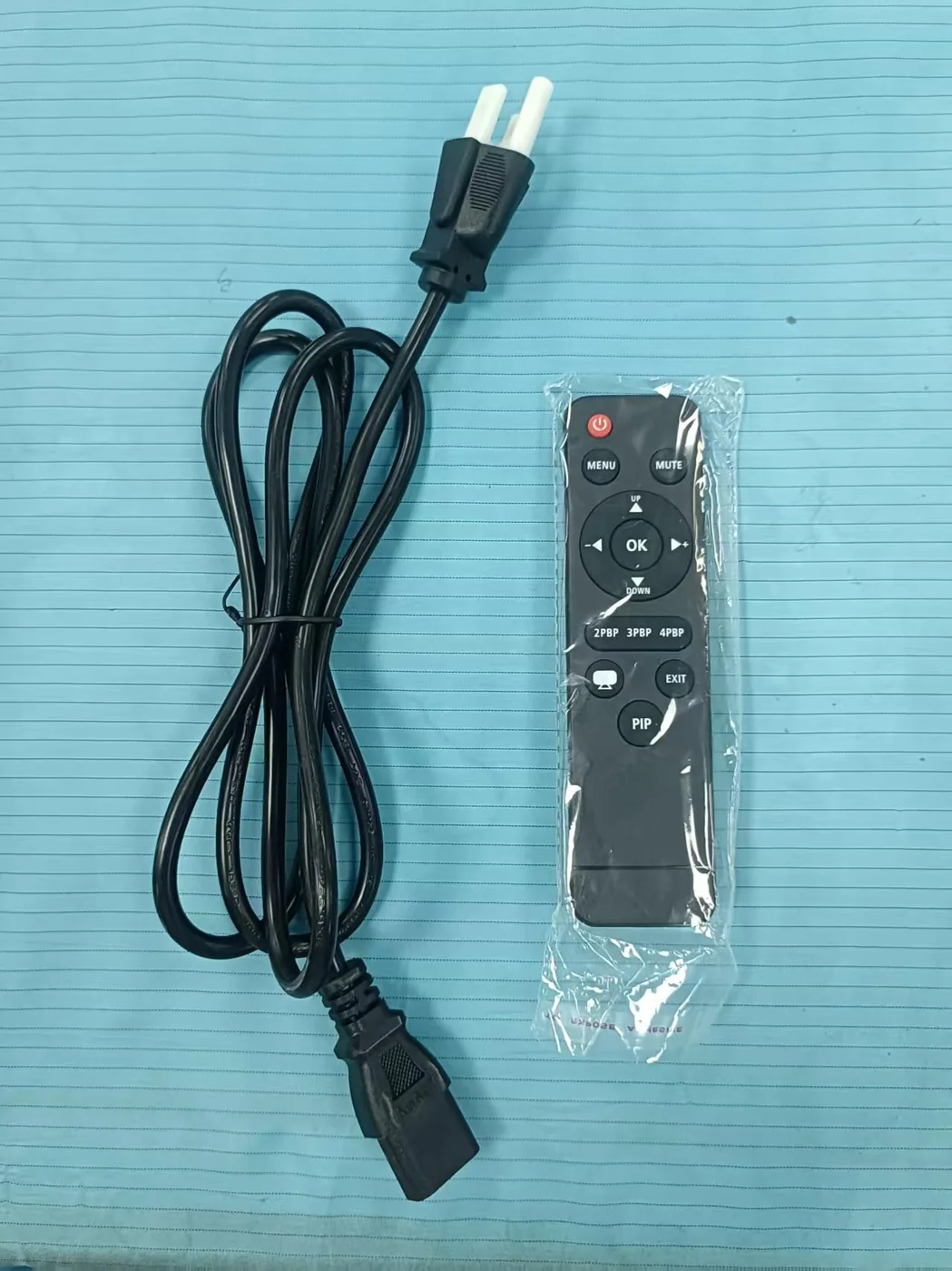

In the Box
- Scheduling software
- Remote control
- Key
- Power cable
- SD card

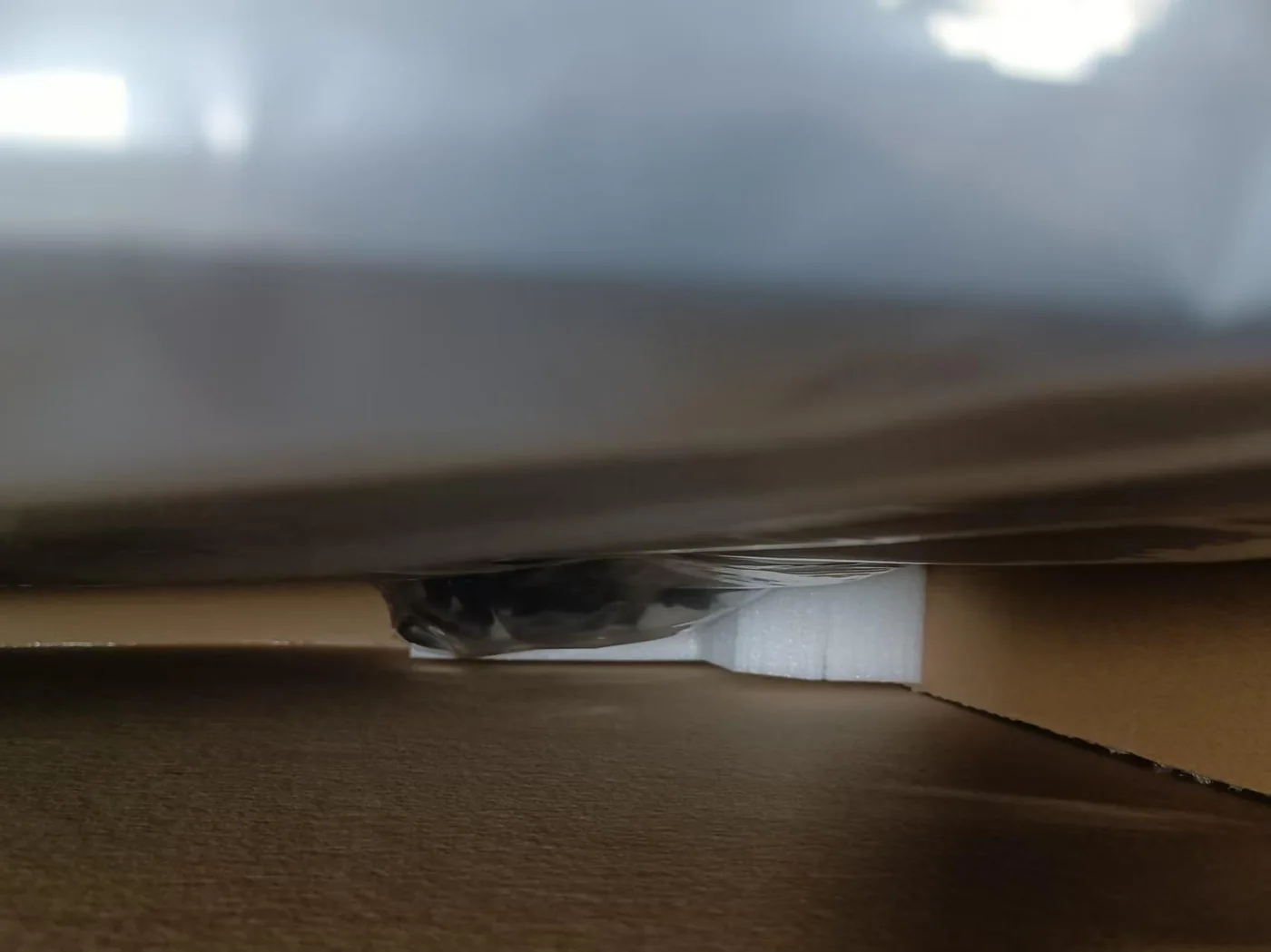

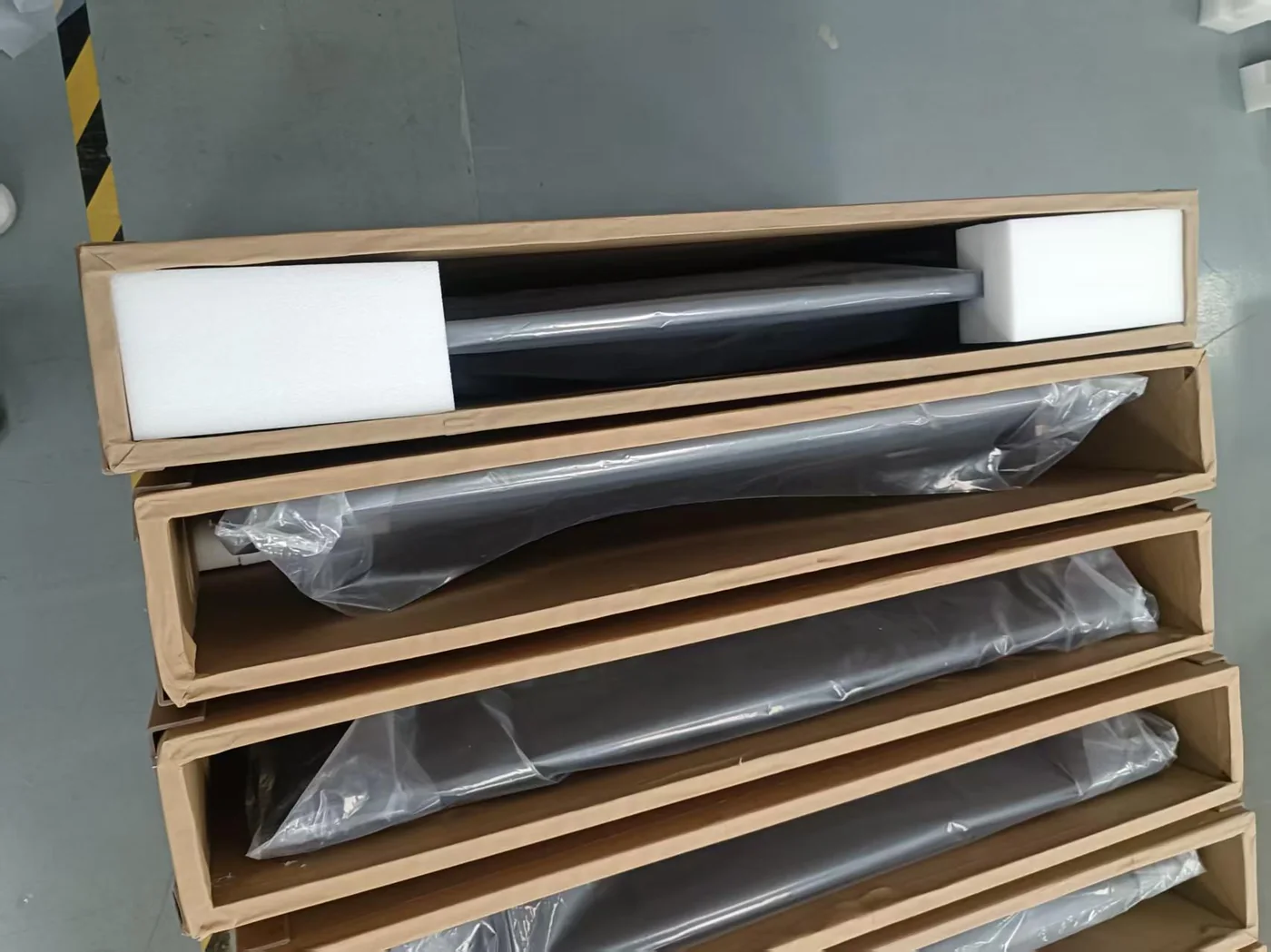

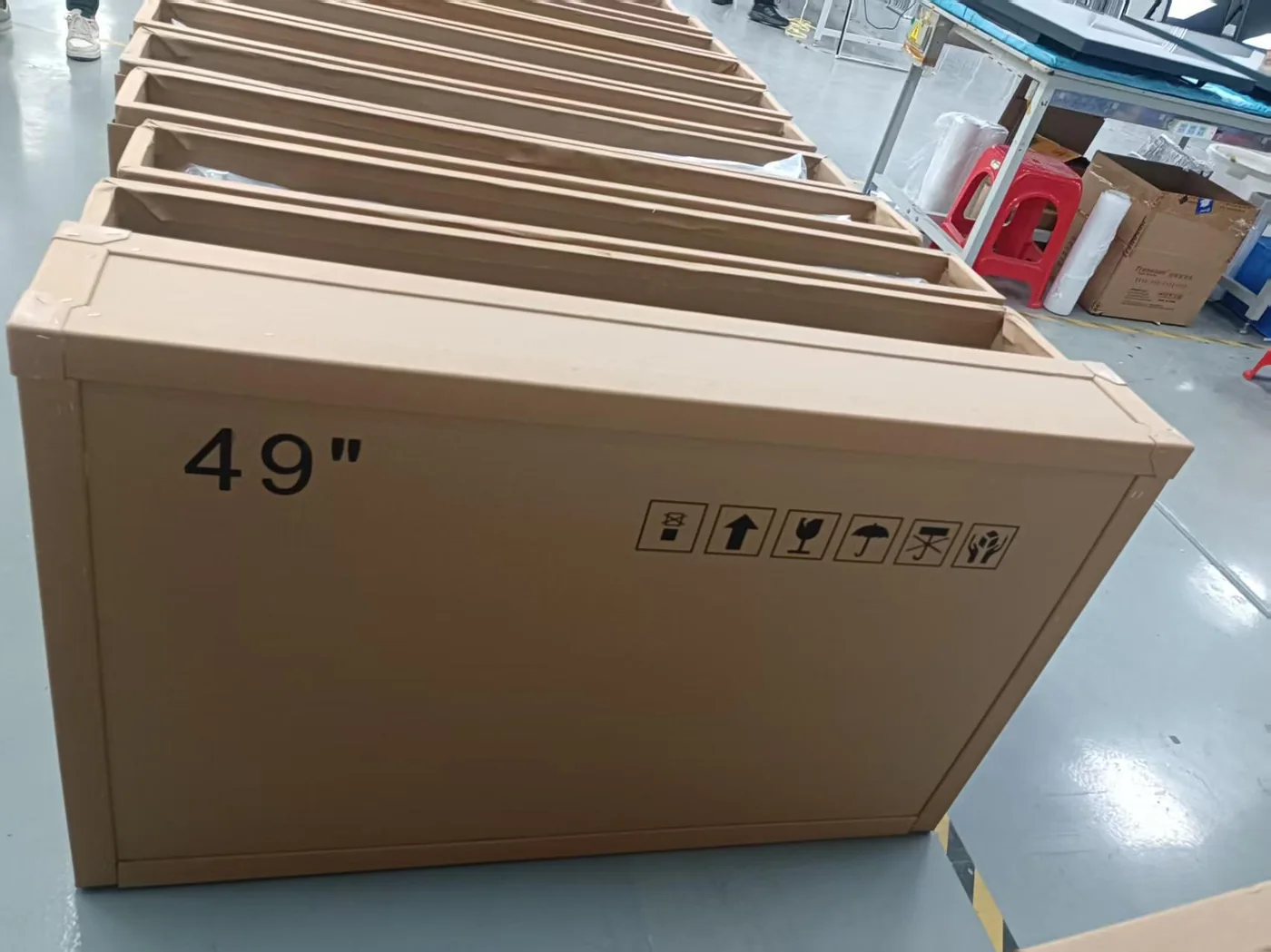

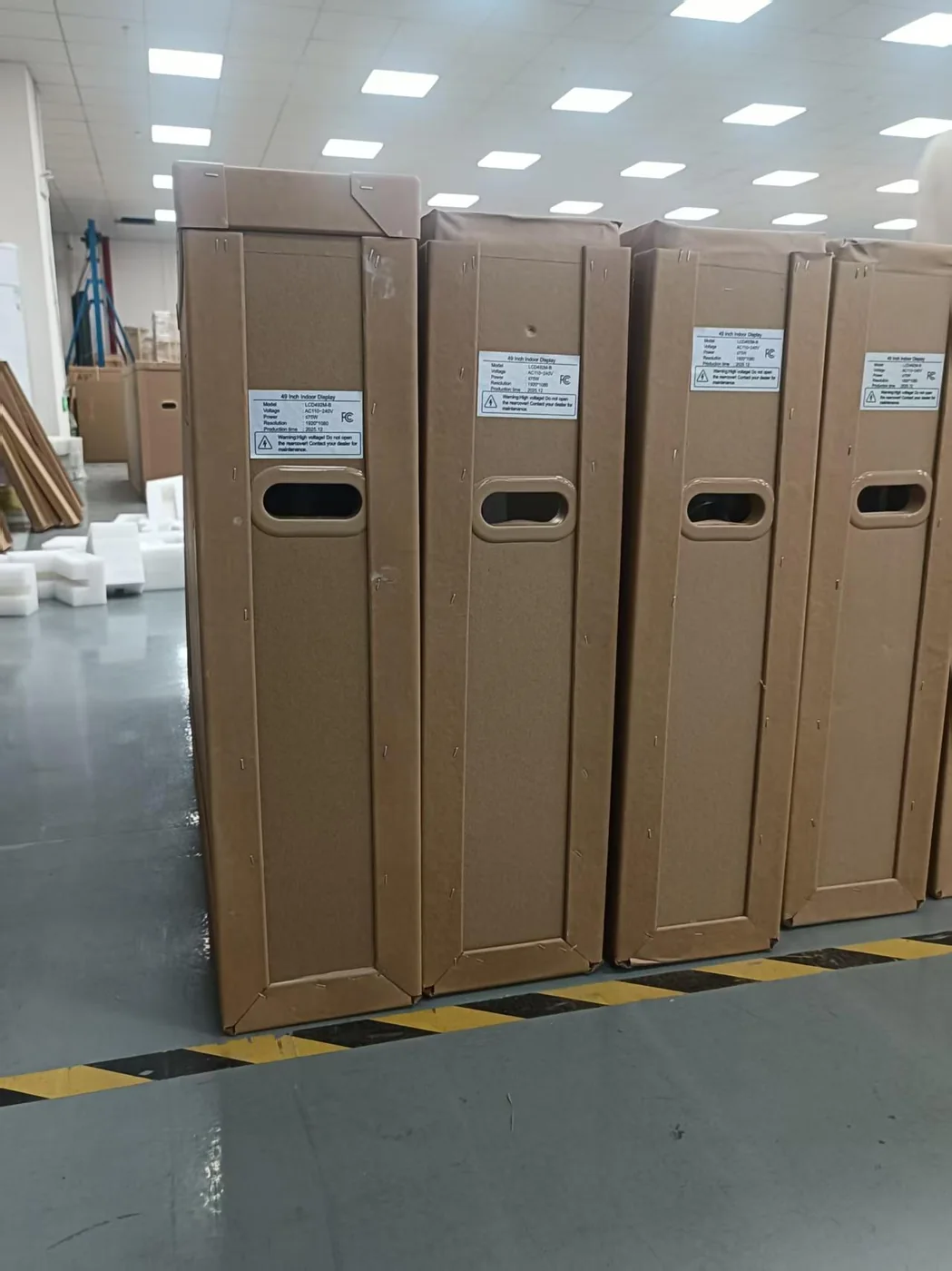

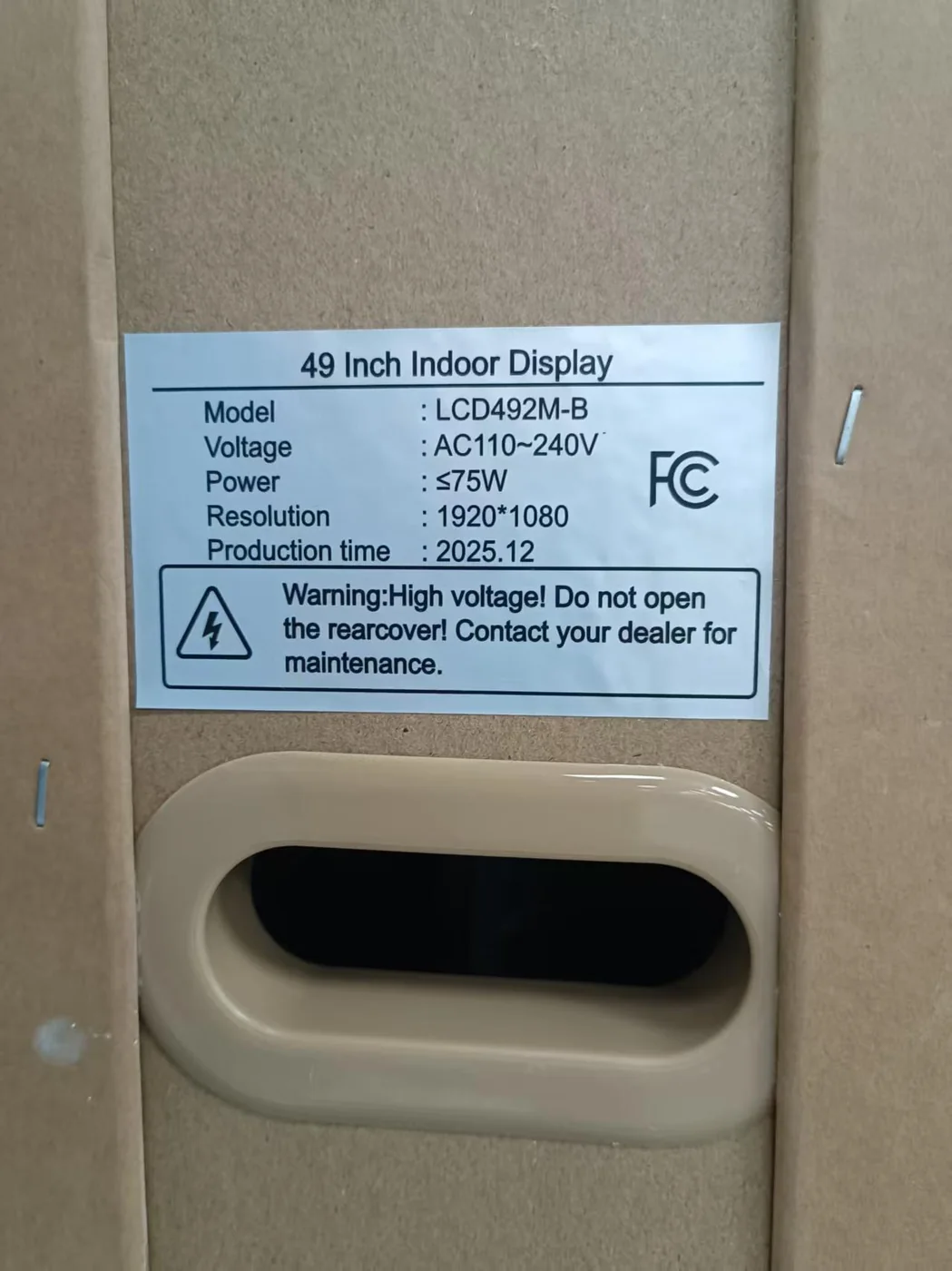

Three-layer packing: protective film, carton, wooden case.
Applications

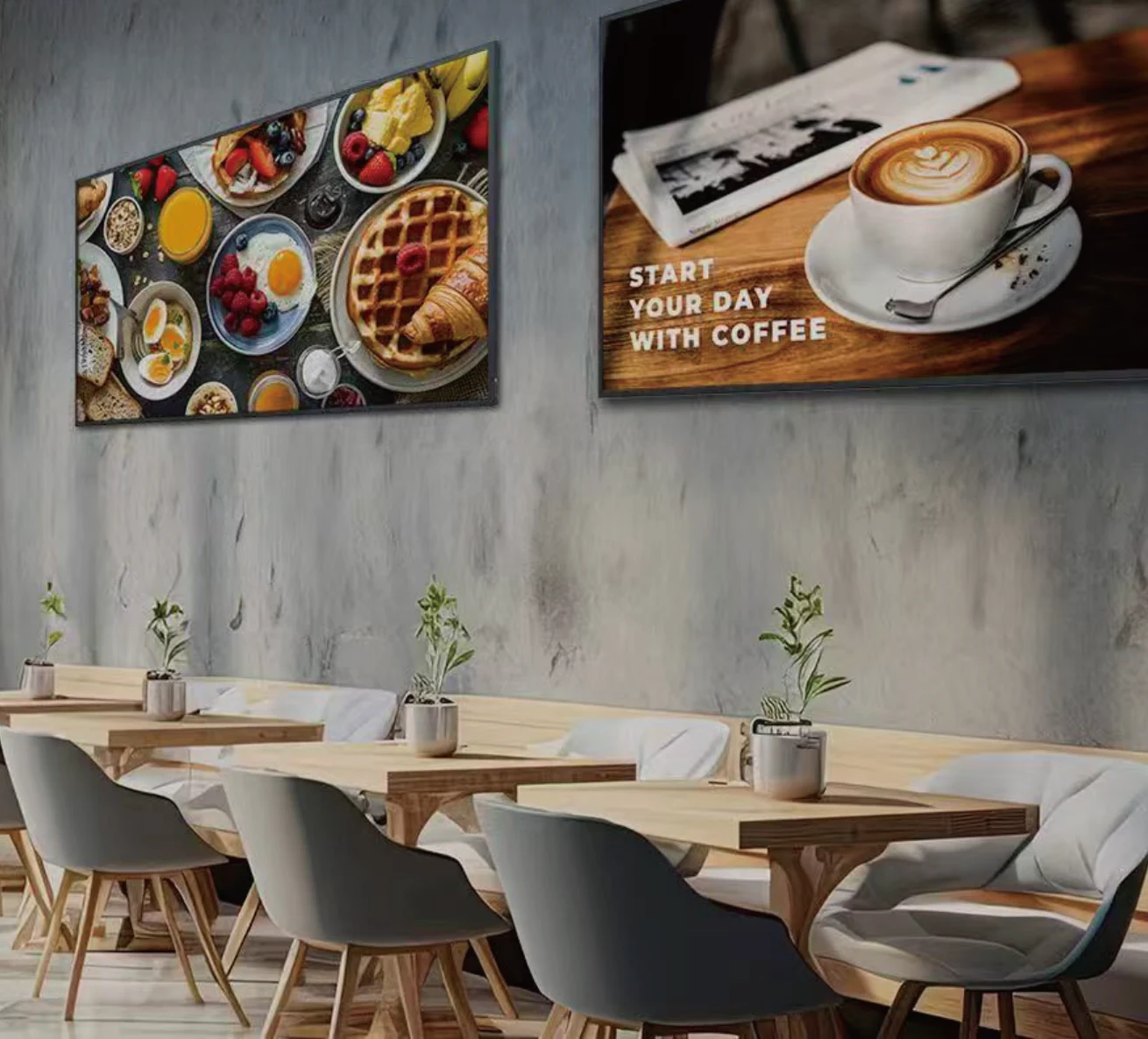

Indoor restaurant menu boards, front-counter displays, hotel lobbies, retail windows and exhibition spaces.
